AUTO DIALER

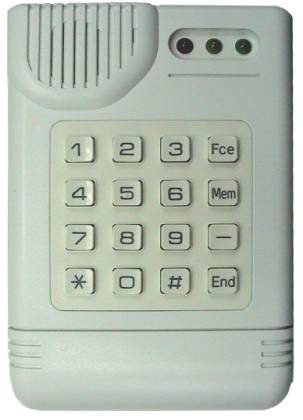

The 12 VDC automatic Phone dialer can automatically call for help or report different events. The dialer has 1 recorded voice message for maximum 20 seconds with 4 sequential preset telephone numbers to an ordinary or mobile telephone. It also can send a numeric message to your pager. The dialer can be triggered manually or by another device, like our RF (wireless part) connection. It will dial sequentially to 1^st preset number, and to 2^nd preset number if no answer and so on. The dialing will stop if the message is received by any preset number.

	Operating Voltage	10 - 14 VDC; operated by 240V AC Adaptor
	Consumption	Stand by max. 15 mA, dialing max. 100 mA
	Triggering	Connecting or disconnecting of IN1 with GND, or pressing fce key
	Telephone Line	Electrically separated, built in over voltage protection
	Dialing Method	Pulse or tone (Factory Default = Tone)
	Tel. Num. memories	4x16 digits for voice message sending 1x26 digits for pager numeric message sending
	Voice Mess. Duration	During sending the message max. 20sec., record is repeated for 40sec.
	Number of Calls	When triggered, each programmed number is called 3 times

The Auto Dialer can be radio-linked to all models in the Wireless Family
