12V/24V DC HEAT ALARM
Heat alarm respond when temperature rises to about 58oC and is suitable for kitchen, basement, warehouse, lofts and garages where false alarm may likely occur to smoke alarm due to steam or cooking flames or particles caused nuisance alarm. Tested and comply with BS5446: Part 1, Grade A1 prEN54; Pt5: Clause 5.4 (Draft) F1 (21-07-97)E performance. The general ionisation and optical smoke alarm will produce nuisance alarm if installed in a kitchen or garage. In some instance at very high temperature and humidity heat alarm is more effective and appropriate. All the Homewatch heat alarm tested and compliance to British standard.
Click for large picture

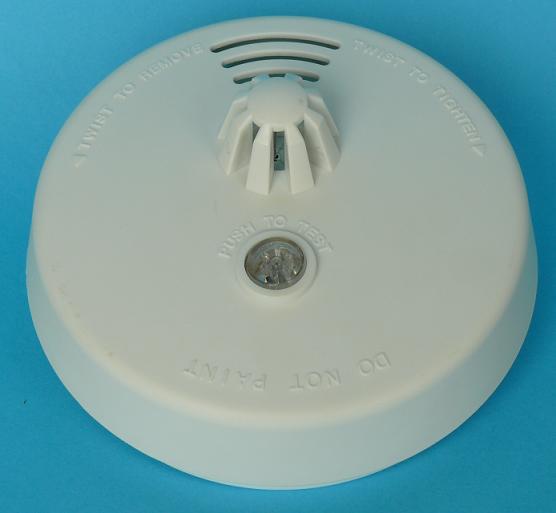

H6311
  • 12V/24V DC operated
  • Achieve Grade A1 54oC~62oC, tested by BSI, UK
  • Recommend install at kitchen, garage, loft and voids
  • Test push button to test function and circuitry
  • Red LED flashes indicating alarm functioning
  • Sounder 85dB at 3 meters (10 ft)
  • Suitable for BS5839; Part 6: 1995 system grade C, D, E, & F
  • Tamper proof mount
  • Easy and simple installation
  • Easy connection to the system control panel
  • Environmental friendly product

Additional feature
  • With additional interconnectable up to 12 alarms or to other Homewatch interconnectable 12/24V DC ionisation and photo alarm. All units sound in the event of one alarm being triggered
  • Battery backup: 9V Alkaline battery backup or 9V Carbon Zinc battery backup (H6312)
  • Low battery warning signal for backup model
